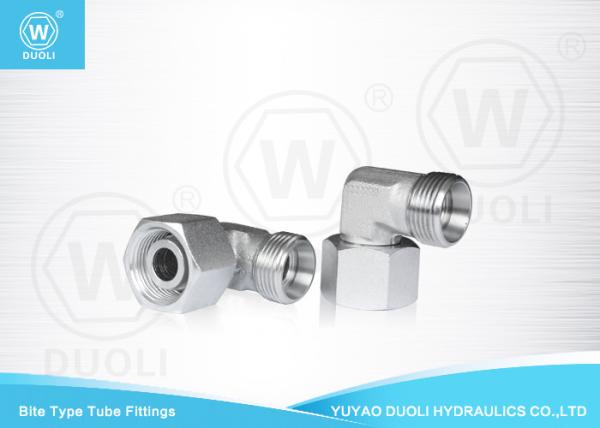

High Pressure 90 Degree Elbow Reducer Tube Adaptor With Swivel Nut By Carbon Steel
Hydraulic connections are different hydraulic components (pumps, transmission lines, reversing valves, stop valves),
Hydraulic motors, hydraulic cylinders, and some auxiliary elements, such as level gauges, thermometers, pressure gauges, etc., are joined together to form a closed loop hydraulic system, which is a connecting function of an accessory.
The hydraulic connector can withstand high pressure, if the hydraulic tubing joints impact sand holes, small holes or pressure is too high can not afford so much pressure and blasting is quite large.
Hydraulic joints are divided into two major categories: hose joints, hard pipe joints
Each of these two categories is divided into several categories:
1) hose connector divided into integrated hose connectors, extruded hose connectors, InteriorLocking
Hose fittings, detachable hose couplings, etc.
2) hard pipe joint is also called transition joint. It is divided into DIN card sleeve type and metric thread joint,
Inch screw thread joint, thread joint, flange, welding joint mining etc.
Hydraulic joints are widely used in military, energy, petrochemical, power, ship, automobile and rail transportation,
In the hydraulic pipeline system of construction machinery, mining, metallurgy, steel works, ocean engineering, etc.
Product Description
Specifications
1, High Quality
2, strong supply ability
3, Thread DIN
4, CNC Manufacure
5, competitive price
Attribute:
| Attribute name | Attribute value | Attribute name | Attribute value |
| materil | carbon steel | head code | circle |
| technology | forged | | |
| type | fitting | connection | male |
| origin | zhejiang china | colour | white |
| model number | 2C9/2D9 | standard | EATON |
| brand | Duoli | surface treatment | galvanized
|
Packaging & Delivery
1. Packaging Details :
standard exporting package or as per customers' requests.
2. Delivery Detail:
within 30 days or as per customers' requirement.
| | Thread | WINNER PART NO. |
| PART NO. | 1 | 2 |
| EW 06L | M12×1.5 | | 2C9-12 |
| EW 08L | M14×1.5 | | 2C9-14 |
| EW 10L | M16×1.5 | | 2C9-16 |
| EW 12L | M18×1.5 | | 2C9-18 |
| EW 15L | M22×1.5 | | 2C9-22 |
| EW 18L | M26×1.5 | | 2C9-26 |
| EW 22L | M30×2.0 | | 2C9-30 |
| EW 28L | M36×2.0 | | 2C9-36 |
| EW 35L | M45×2.0 | | 2C9-45 |
| EW 42L | M52×2.0 | | 2C9-52 |
| EW 06S | M14×1.5 | | 2D9-14 |
| EW 08S | M16×1.5 | | 2D9-16 |
| EW 10S | M18×1.5 | | 2D9-18 |
| EW 12S | M20×1.5 | | 2D9-20 |
| EW 14S | M22×1.5 | | 2D9-22 |
| EW 16S | M24×1.5 | | 2D9-24 |
| EW 20S | M30×2.0 | | 2D9-30 |
| EW 25S | M36×2.0 | | 2D9-36 |
| EW 30S | M42×2.0 | | 2D9-42 |
| EW 38S | M52×2.0 | | 2D9-52 |
